一、产品介绍
SY铝设备线夹适用于变电母线引下线与电气设备（如变压器、断路器、隔离开关、空墙套管等）的出线端子接续。按照材料的不同出现端子分为铜质和铝质两大类。
二、产品特点
SY铝设备线夹采用了挤压铝棒锻压成型工艺，质地致密，强度高。避免了铸造工艺引起的内部疏松、砂眼、夹渣等缺陷引起的压接开裂、接触不良等事故分险。 |

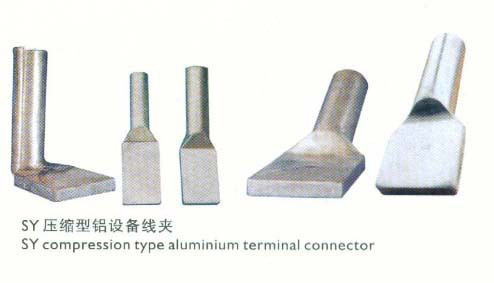

SY系列压缩型铝设备线夹型号及参数：
|
型号 |
适用导线型号 |
主要尺寸(mm) |
|
d |
D |
L1 |
L2 |
A |
B |
|
SY-35/6 |
LGJ-35/6 |
9.7 |
18 |
60 |
70 |
30 |
8 |
|
SY-50/8 |
LGJ-50/8 |
11.0 |
18 |
60 |
70 |
30 |
8 |
|
SY-70/10 |
LGJ-70/10 |
13.0 |
22 |
70 |
70 |
40 |
8 |
|
SY-95/15~20 |
LGJ-95/15~20 |
15.5 |
26 |
80 |
90 |
40 |
8 |
|
SY-120/7 |
LGJ-120/7 |
16.0 |
26 |
80 |
90 |
50 |
10 |
|
SY-120/20~25 |
LGJ-120/20~25 |
17.2 |
26 |
80 |
90 |
50 |
10 |
|
SY-150/8~20 |
LGJ-150/8~20 |
18.2 |
30 |
90 |
90 |
50 |
10 |
|
SY-150/25~35 |
LGJ-150/25~35 |
19.0 |
30 |
90 |
90 |
50 |
10 |
|
SY-185/10~30 |
LGJ-185/10~30 |
20.5 |
32 |
90 |
90 |
50 |
10 |
|
SY-185/45 |
LGJ-185/45 |
21.5 |
32 |
90 |
90 |
50 |
10 |
|
SY-240/30~40 |
LGJ-240/30~40 |
23.0 |
36 |
100 |
90 |
50 |
12 |
|
SY-240/55 |
LGJ-240/55 |
24.0 |
36 |
100 |
90 |
50 |
12 |
|
SY-300/15~20 |
LGJ-300/15~20 |
25.0 |
40 |
110 |
110 |
63 |
13 |
|
SY-300/25~40 |
LGJ-300/25~40 |
25.5 |
40 |
110 |
110 |
63 |
13 |
|
SY-300/50 |
LGJ-300/50 |
26.0 |
40 |
110 |
110 |
63 |
13 |
|
SY-300/70 |
LGJ-300/70 |
27.0 |
42 |
110 |
110 |
63 |
13 |
|
SY-400/20~25 |
LGJ-400/20~25 |
28.5 |
45 |
120 |
110 |
63 |
16 |
|
SY-400/50 |
LGJ-400/50 |
29.5 |
45 |
120 |
110 |
63 |
16 |
|
SY-400/65 |
LGJ-400/65 |
29.5 |
48 |
120 |
110 |
63 |
16 |
|
SY-400/95 |
LGJ-400/95 |
31.0 |
48 |
120 |
110 |
63 |
16 |
|
SY-500/35~45 |
LGJ-500/35~45 |
31.5 |
52 |
130 |
90 |
80 |
16 |
|
SY-500/65 |
LGJ-500/65 |
32.5 |
52 |
130 |
90 |
80 |
16 |
|
SY-630/45 |
LGJ-630/45 |
35.5 |
60 |
150 |
110 |
100 |
20 |
|
SY-630/55~80 |
LGJ-630/55~80 |
36.5 |
60 |
150 |
110 |
100 |
20 |
|
SY-800/55~100 |
LGJ-800/55~100 |
40.5 |
65 |
170 |
130 |
125 |
22 |
|
SY-120/7~20-80 |
LGJ-120/7~20 |
17.2 |
26 |
80 |
90 |
80 |
9 |
|
SY-150/8~20-80 |
LGJ-150/8~20 |
18.2 |
30 |
90 |
90 |
80 |
9 |
|
SY-185/10~35-80 |
LGJ-185/10~35 |
20.5 |
32 |
90 |
90 |
80 |
10 |
|
SY-240/30~40-80 |
LGJ-240/30~40 |
23.0 |
36 |
100 |
90 |
80 |
10 |
|
SY-300/15~40-80 |
LGJ-300/15~40 |
25.5 |
40 |
110 |
100 |
80 |
12 |
|
SY-400/20~65-80 |
LGJ-400/20~65 |
29.2 |
45 |
120 |
100 |
80 |
12 |
|
SY-120/7~20-100 |
LGJ-120/7~20 |
17.2 |
26 |
80 |
110 |
100 |
8 |
|
SY-150/8~20-100 |
LGJ-150/8~20 |
18.2 |
30 |
90 |
110 |
100 |
8 |
|
SY-185/10~35-100 |
LGJ-185/10~35 |
20.5 |
32 |
90 |
115 |
100 |
10 |
|
SY-240/30~40-100 |
LGJ-240/30~40 |
23.0 |
36 |
100 |
115 |
100 |
10 |
|
SY-300/15~40-100 |
LGJ-300/15~40 |
25.5 |
40 |
110 |
115 |
100 |
12 |
|
SY-400/20~65-100 |
LGJ-400/20~65 |
29.5 |
45 |
120 |
115 |
100 |
12 |
|
SY-500/35~65-100 |
LGJ-500/35~65 |
32.5 |
52 |
130 |
115 |
100 |
14 | |
|
