一、产品用途

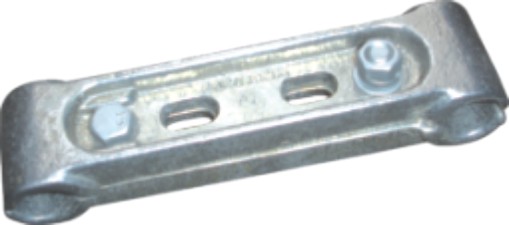

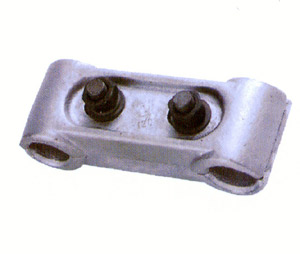

MRJ型双分裂软母线间隔棒适用于将软母线及其引下线的线间距离保持不变且两根线不碰击。
二、产品特点
a、握力好，固定线路牢固。
b、节能设计，线路损耗小。
c、绝缘性好，不伤导线。
d、安装方便，维护简单。
e、结构紧凑，美观大方
|
MRJ型双分裂软母线间隔棒参数型号：
|
型号 |
适用母线规格 (mm) |
主要尺寸 (mm) |
|
A |
R |
L |
|
MRJ-4/120 |
18.1-22.0 |
50 |
11 |
120 |
|
MRJ-5/120 |
23.0-29.0 |
60 |
14 |
120 |
|
MRJ-6/120 |
29.1-35.0 |
70 |
17 |
120 |
|
MRJ-4/200 |
18.1-22.0 |
50 |
11 |
200 |
|
MRJ-5/200 |
23.0-29.0 |
60 |
14 |
200 |
|
MRJ-6/200 |
29.0-35.0 |
70 |
17 |
200 |
|
MRJ-4/400 |
18.1-22.0 |
50 |
11 |
400 |
|
MRJ-5/400 |
23.0-29.0 |
60 |
14 |
400 |
|
MRJ-6/400 |
29.0-35.0 |
70 |
17 |
400 |
|
MRJ-9/120 |
45.0-49.0 |
60 |
24 |
120 |
|
MRJ-9/200 |
45.0-49.0 |
60 |
24 |
200 |
|
MRJ-9/400 |
45.0-49.0 |
60 |
24 |
400 |
|
MRJ-10/200 |
50.0-55.0 |
70 |
26 |
200 |
|
MRJ-10/400 |
50.0-55.0 |
70 |
26 |
400 |
|
型号 |
适用母线规格 (mm) |
主要尺寸 (mm) |
重量(kg) |
|
A |
B |
L |
R |
|
MRJ-600K/120 |
LGKK-600 |
50 |
68 |
120 |
26 |
0.7 |
|
MRJ-600K/200 |
LGKK-600 |
60 |
70 |
200 |
26 |
2.2 |
|
MRJ-600K/400 |
LGKK-600 |
60 |
70 |
400 |
26 |
2.5 |
|
MRJ-600K/450 |
LGKK-600 |
60 |
70 |
450 |
26 |
3.3 |
|
MRJ-900K/120 |
LGKK-900 |
50 |
65 |
120 |
26 |
0.7 |
|
MRJ-900K/200 |
LGKK-900 |
50 |
68 |
200 |
26 |
2.2 |
|
MRJ-900K/400 |
LGKK-900 |
50 |
68 |
400 |
26 |
2.5 |
|
MRJ-900K/450 |
LGKK-900 |
50 |
68 |
450 |
26 |
3.3 |
|
MRJ-1400K/400 |
LGKK-1400 |
70 |
83 |
400 |
29 |
3.5 |
|
MRJ-1400/120 |
LGJQT-1400 |
50 |
68 |
120 |
26 |
0.7 |
|
MRJ-1400/200 |
LGJQT-1400 |
50 |
68 |
200 |
26 |
2.2 |
|
MRJ-1400/400 |
LGJQT-1400 |
60 |
70 |
400 |
26 |
2.5 |
|
MRJ-1400/450 |
LGJQT-1400 |
60 |
70 |
450 |
26 |
3.3 |
|
MRJ-1440N/200 |
NAHLGJQ-1400 |
60 |
70 |
200 |
26 |
2.2 |
|
MRJ-1440N/400 |
NAHLGJQ-1400 |
60 |
70 |
400 |
26 |
2.5 | |
|
