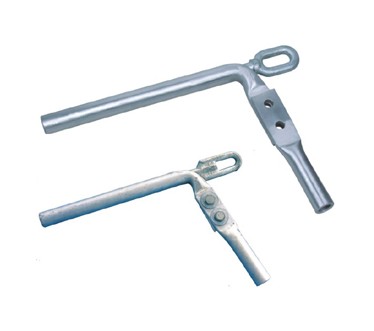

NY-G系列钢绞线液压型耐张线夹（钢锚焊接）型号及参数：
|
型号 |
适用绞线 |
主要尺寸(mm) |
握力(≥kN) |
|
标准 |
标记 |
D |
L |
L1 |
D3 |
C |
L2 |
|
NY-35G |
GB1200-88
1270N/mm2 |
1×7-7.8 |
16 |
225 |
115 |
16 |
20 |
55 |
45 |
|
NY-55G |
1×7-9.6 |
20 |
250 |
140 |
16 |
23 |
55 |
70 |
|
NY-80G |
1×19-11.5 |
24 |
295 |
170 |
18 |
27 |
65 |
100 |
|
NY-50G |
GB1200-75
1225N/mm2 |
1×7-9.0 |
18 |
240 |
130 |
16 |
20 |
55 |
60 |
|
NY-70G |
1×19-11.0 |
22 |
270 |
155 |
18 |
23 |
55 |
88 |
|
NY-100G |
1×19-13.0 |
26 |
315 |
185 |
20 |
27 |
70 |
120 |
|
NY-120G |
1×19-14.0 |
28 |
325 |
195 |
22 |
29 |
70 |
140 |
|
NY-135G |
1×19-15.0 |
30 |
360 |
215 |
22 |
31 |
75 |
155 |
|
NY-100GC |
GB1200-88
1370N/mm2 |
1×19-13.0 |
28 |
365 |
220 |
22 |
31 |
75 |
130 |
|
NY-125GC |
1×19-14.5 |
32 |
400 |
250 |
24 |
35 |
83 |
165 |
|
NY-150GC |
1×19-16.0 |
34 |
420 |
270 |
24 |
35 |
83 |
200 | |
