一、产品介绍

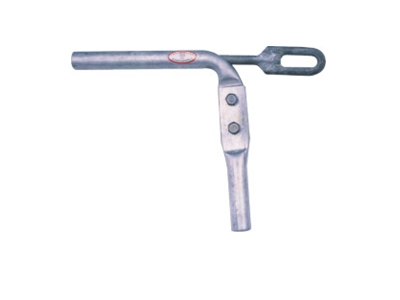

NY耐张线夹(液压型、钢锚焊接)主要用于固定导线，以承受导线张力，并将导线挂至耐张串组或杆塔上的金具。
二、产品特点
a、夹体采用高强度铝钢材料制造。
b、外表光洁，使用寿命长。
c、安装使用简便。
d、无磁滞损耗，是低碳、节能认证产品。 |
NY液压型耐张线夹型号及参数:
|
型号 |
适用导线 |
主要尺寸(mm) |
握力(≥kN) |
|
D1 |
D2 |
D3 |
C |
L2 |
L1 |
L3 |
|
NY-95/15 |
LGJ-95/15 |
30 |
14 |
16 |
20 |
55 |
390 |
190 |
33.5 |
|
NY-95/20 |
LGJ-95/20 |
390 |
35.5 |
|
NY-120/20 |
LGJ-120/20 |
445 |
39.0 |
|
NY-120/25 |
LGJ-120/25 |
435 |
45.5 |
|
NY-150/20 |
LGJ-150/20 |
30 |
14 |
16 |
20 |
55 |
425 |
205 |
44.0 |
|
NY-150/25 |
LGJ-150/25 |
14 |
16 |
20 |
55 |
445 |
205 |
51.5 |
|
NY-150/35 |
LGJ-150/35 |
16 |
16 |
20 |
55 |
465 |
205 |
62.0 |
|
NY-185/25 |
LGJ-185/25 |
32 |
14 |
16 |
20 |
55 |
465 |
205 |
56.5 |
|
NY-185/30 |
LGJ-185/30 |
14 |
16 |
20 |
55 |
465 |
205 |
61.5 |
|
NY-185/45 |
LGJ-185/45 |
34 |
18 |
18 |
22 |
55 |
485 |
205 |
76.5 |
|
NY-240/30 |
LGJ-240/30 |
36 |
16 |
18 |
22 |
55 |
510 |
220 |
72.0 |
|
NY-240/40 |
LGJ-240/40 |
16 |
18 |
22 |
55 |
505 |
220 |
79.0 |
|
NY-240/55 |
LGJ-240/55 |
36 |
20 |
20 |
24 |
65 |
555 |
220 |
97.0 |
|
NY-300/15 |
LGJ-300/15 |
40 |
14 |
16 |
20 |
55 |
500 |
260 |
65.0 |
|
NY-300/20 |
LGJ-300/20 |
14 |
18 |
22 |
55 |
505 |
260 |
72.0 |
|
NY-300/25 |
LGJ-300/25 |
14 |
18 |
22 |
55 |
520 |
260 |
79.5 |
|
NY-300/40 |
LGJ-300/40 |
40 |
16 |
20 |
24 |
65 |
545 |
260 |
88.0 |
|
NY-300/50 |
LGJ-300/50 |
18 |
20 |
24 |
65 |
570 |
260 |
98.5 |
|
NY-300/70 |
LGJ-300/70 |
42 |
22 |
22 |
26 |
70 |
625 |
260 |
122.0 |
|
NY-400/20 |
LGJ-400/20 |
45 |
14 |
18 |
22 |
55 |
560 |
270 |
84.5 |
|
NY-400/25 |
LGJ-400/25 |
14 |
18 |
22 |
55 |
560 |
270 |
91.0 |
|
NY-400/35 |
LGJ-400/35 |
16 |
20 |
24 |
78 |
590 |
270 |
99.0 |
|
NY-400/50 |
LGJ-400/50 |
20 |
22 |
26 |
70 |
615 |
270 |
117.0 |
|
NY-400/65 |
LGJ-400/65 |
48 |
22 |
22 |
26 |
70 |
650 |
270 |
128.0 |
|
NY-400/95 |
LGJ-400/95 |
26 |
24 |
30 |
80 |
695 |
270 |
163.0 |
|
型号 |
适用导线 |
主要尺寸（mm） |
握力（≥kN） |
|
D1 |
D2 |
D3 |
C |
L2 |
L1 |
L3 |
|
NY-150Q |
LGJQ-150 |
30 |
14 |
16 |
20 |
55 |
440 |
205 |
39 |
|
NY-185Q |
LGJQ-185 |
32 |
14 |
16 |
20 |
55 |
480 |
205 |
48 |
|
NY-240Q |
LGJQ-240 |
36 |
16 |
18 |
22 |
55 |
535 |
220 |
66 |
|
NY-300Q |
LGJQ-300 |
40 |
16 |
20 |
24 |
65 |
570 |
260 |
80 |
|
NY-400Q |
LGJQ-400 |
45 |
20 |
22 |
27 |
70 |
620 |
270 |
103 |
|
NY-500Q |
LGJQ-500 |
52 |
22 |
22 |
31 |
75 |
640 |
255 |
129 |
|
NY-600Q |
LGJQ-600 |
60 |
22 |
24 |
33 |
83 |
665 |
285 |
151 |
|
NY-120J |
LGJQ-120 |
30 |
14 |
16 |
20 |
55 |
450 |
190 |
43 |
|
NY-150J |
LGJQ-150 |
30 |
16 |
16 |
20 |
55 |
480 |
205 |
59 |
|
NY-185J |
LGJQ-185 |
34 |
18 |
18 |
22 |
55 |
510 |
205 |
68 |
|
NY-240J |
LGJQ-240 |
36 |
20 |
20 |
24 |
65 |
570 |
220 |
89 |
|
NY-300J |
LGJQ-300 |
42 |
22 |
22 |
26 |
70 |
630 |
260 |
119 |
|
NY-400J |
LGJQ-400 |
48 |
26 |
24 |
31 |
83 |
710 |
270 |
153 | |
|
