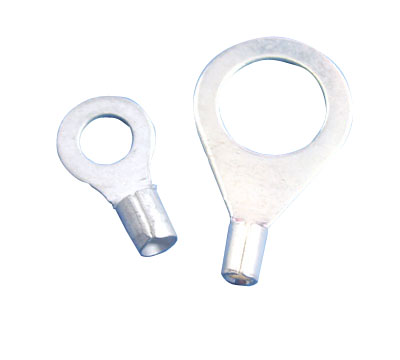

OT圆形特大孔冷压线鼻产品参数：
|
型号 |
尺寸 |
|
孔径 d2 |
外圆宽B |
总长L |
标准F |
压线脚长度E |
压线脚外圆宽D |
压线脚内圆宽d |
|
OT6-4 |
4.2 |
8 |
20 |
9 |
7 |
6 |
4.4 |
|
OT6-5 |
5.2 |
11 |
21 |
8.5 |
7 |
6 |
4.4 |
|
OT6-6 |
6.2 |
11 |
23 |
10.5 |
7 |
6 |
4.4 |
|
OT6-8 |
8.2 |
14.2 |
26 |
11.9 |
7 |
6 |
4.4 |
|
OT6-10 |
10.2 |
16.8 |
30 |
14.6 |
7 |
6 |
4.4 |
|
OT6-12M |
12.5 |
18.2 |
31 |
14.9 |
7 |
6 |
4.4 |
|
OT6-12L |
12.5 |
22.6 |
36 |
17.7 |
7 |
6 |
4.4 |
|
OT6-14 |
14.5 |
20 |
33 |
16 |
7 |
6 |
4.4 |
|
OT6-16 |
16.5 |
22.4 |
36 |
17.8 |
7 |
6 |
4.4 |
|
OT10-5 |
5.2 |
12 |
25 |
10 |
9 |
7.5 |
5.7 |
|
OT10-6 |
6.2 |
13.6 |
27 |
11.2 |
9 |
7.5 |
5.7 |
|
OT10-8 |
8.2 |
15 |
30 |
13.5 |
9 |
7.5 |
5.7 |
|
OT10-10 |
10.2 |
17 |
33 |
15.5 |
9 |
7.5 |
5.7 |
|
OT10-12 |
12.5 |
19 |
35 |
16.5 |
9 |
7.5 |
5.7 |
|
OT10-14 |
14.5 |
20.6 |
35 |
15.7 |
9 |
7.5 |
5.7 |
|
OT10-16 |
16.5 |
23 |
40 |
19.5 |
9 |
7.5 |
5.7 |
|
OT16-6 |
6.2 |
13.8 |
28 |
10.6 |
10.5 |
9.5 |
7.3 |
|
OT16-8 |
8.2 |
15.8 |
32 |
13.6 |
10.5 |
9.5 |
7.3 |
|
OT16-10 |
10.5 |
17.6 |
34 |
14.7 |
10.5 |
9.5 |
7.3 |
|
OT16-12 |
12.5 |
19.8 |
37 |
16.6 |
10.5 |
9.5 |
7.3 |
|
OT16-16 |
16.5 |
25.2 |
44 |
20.4 |
11 |
9.5 |
7.3 |
|
OT25-6 |
6.2 |
16 |
32.6 |
12.4 |
12.2 |
11.2 |
8 |
|
OT25-8 |
8.2 |
16 |
34 |
13.8 |
12.2 |
11.2 |
8 |
|
OT25-10 |
10.5 |
20 |
38 |
15.8 |
12.2 |
11.2 |
8 |
|
OT25-12 |
12.5 |
21.2 |
40 |
17.2 |
12.2 |
11.2 |
8 |
|
OT25-16 |
16.5 |
25.6 |
44 |
19 |
12.2 |
11.2 |
8 |
|
OT35-8 |
8.2 |
21 |
41 |
16.5 |
14 |
13 |
9.6 |
|
OT35-10 |
10.2 |
21 |
42 |
17.5 |
14 |
13 |
9.6 |
|
OT35-12 |
12.5 |
24 |
44 |
18 |
14 |
13 |
9.6 | |
|
