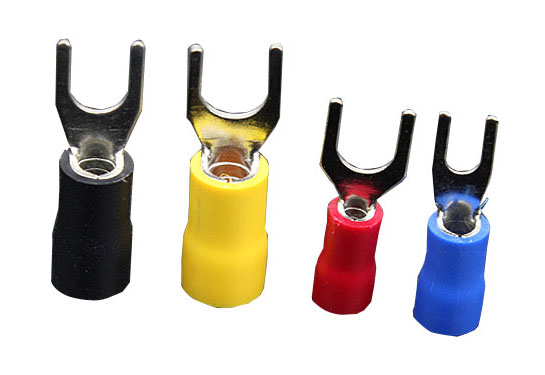

SV叉形孔冷压线鼻型号参数：
导线截面0.5~1.5mm²（A.W.G22~16）最大电流1max=19A 材质：紫铜
|
型号 |
美制螺栓号 |
螺栓口径d2（mm） |
尺寸 |
颜色 |
|
B |
L |
F |
H |
Dφ |
|
SV 1.25-3 |
＃4 |
3.2 |
5.7 |
21.2 |
6.5 |
10.0 |
4.3 |
红 |
|
SV 12.5-3.5S |
＃5 |
3.7 |
5.7 |
21.2 |
6.5 |
|
SV 12.5-3.5L |
＃5 |
3.7 |
6.4 |
21.2 |
6.5 |
|
SV 12.5-4S |
＃8 |
4.3 |
6.4 |
21.2 |
6.5 |
|
SV 12.5-4M |
＃8 |
4.3 |
7.2 |
21.2 |
6.5 |
|
SV 12.5-4L |
＃8 |
4.3 |
8.1 |
21.2 |
6.5 |
|
SV 12.5-5S |
＃10 |
5.3 |
8.1 |
21.2 |
6.5 |
|
SV 12.5-5L |
＃10 |
5.3 |
9.5 |
21.2 |
6.5 |
|
SV 12.5-6S |
1/4 |
6.5 |
9.5 |
21.2 |
6.5 |
|
SV 12.5-6L |
1/4 |
6.5 |
12.0 |
27.2 |
11.0 |
|
SV 12.5-8 |
5/16 |
8.5 |
14.0 |
29.0 |
12.5 |
导线截面1.5~2.5mm²（A.W.G16-14）最大电流1max=27A 材质：紫铜
|
型号 |
美制螺栓号 |
螺栓口径d2（mm） |
尺寸 |
颜色 |
|
B |
L |
F |
H |
Dφ |
|
SV2-3 |
＃4 |
3.2 |
5.7 |
21.2 |
6.5 |
10.0 |
4.9 |
蓝 |
|
SV2-3.5S |
＃6 |
3.7 |
5.7 |
21.2 |
6.5 |
|
SV2-3.5L |
＃6 |
3.7 |
6.4 |
21.2 |
6.5 |
|
SV2-4S |
＃8 |
4.3 |
6.4 |
21.2 |
6.5 |
|
SV2-4M |
＃8 |
4.3 |
7.2 |
21.2 |
6.5 |
|
SV2-4L |
＃8 |
4.3 |
8.1 |
21.2 |
6.5 |
|
SV2-5S |
＃10 |
5.3 |
8.1 |
21.2 |
6.5 |
|
SV2-5L |
＃10 |
5.3 |
9.5 |
21.2 |
6.5 |
|
SV2-6S |
1/4 |
6.5 |
9.5 |
21.2 |
6.5 |
|
SV2-6L |
1/4 |
6.5 |
12.0 |
27.2 |
11.0 |
|
SV2-8 |
5/16 |
8.5 |
14.0 |
29.0 |
12.5 |
导线截面2.5~4mm²（A.W.G14-12）最大电流1max=37A 材质：紫铜
|
型号 |
美制螺栓号 |
螺栓口径d2（mm） |
尺寸 |
颜色 |
|
B |
L |
F |
H |
Dφ |
|
SV3.5-3 |
＃4 |
3.2 |
5.7 |
24.8 |
7.0 |
12.5 |
6.2 |
黑 |
|
SV3.5-4 |
＃8 |
4.3 |
8.0 |
24.8 |
7.0 |
|
SV3.5-5 |
＃10 |
5.3 |
8.0 |
248 |
7.0 |
|
SV3.5-6 |
1/4 |
6.4 |
12.0 |
28.0 |
12.1 |
导线截面4~6mm²（A.W.G12-10）最大电流1max=48A 材质：紫铜
|
型号 |
美制螺栓号 |
螺栓口径d2（mm） |
尺寸 |
颜色 |
|
B |
L |
F |
H |
Dφ |
|
SV5.5-3.5 |
＃6 |
3.7 |
8.3 |
25.2 |
7.5 |
12.5 |
6.7 |
黄 |
|
SV5.5-4S |
＃8 |
4.3 |
8.3 |
25.2 |
7.5 |
|
SV5.5-4L |
＃8 |
4.3 |
9.0 |
25.2 |
7.5 |
|
SV5.5-5 |
＃10 |
5.3 |
9.0 |
25.2 |
7.5 |
|
SV5.5-6S |
1/4 |
6.5 |
9.0 |
25.2 |
7.5 |
|
SV5.5-6L |
1/4 |
6.5 |
12.0 |
31.2 |
12.0 |
|
SV5.5-8 |
5/16 |
8.4 |
14.0 |
30.0 |
11.5 |
