一、产品特点

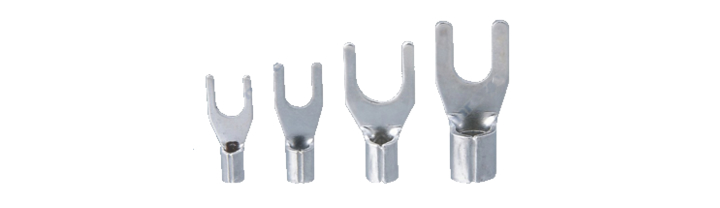

UT叉形冷压线鼻是电缆电线接头中最常用的一种叉形裸端头；产品质量可靠价格低廉，操作方便。
二、产品用途
适用于家用电器，电企业，机械设备厂，船厂，配电柜配电箱等，产品外观规格良好，导电性能好，安全。
三、产品材质
紫铜，黄铜 表面处理：镀银焊口 国标规格
 |
UT叉形冷压线鼻技术参数：
|
型号 |
尺寸mm |
|
孔径d2 |
外圆宽B |
总长L |
标准F |
压线脚长度E |
压线脚外圆宽D |
压线脚内圆宽d |
|
UT0.5-3 |
3.2 |
6 |
13.2 |
6.1 |
4.1 |
2.2 |
1.4 |
|
UT0.5-4 |
4.2 |
7 |
15 |
7.3 |
4.2 |
2.2 |
1.4 |
|
UT1-3S |
3.2 |
5.6 |
14 |
6.2 |
5 |
3 |
2.2 |
|
UT1-3M |
3.2 |
6 |
15 |
7 |
5 |
3 |
2 |
|
UT1-4 |
4.2 |
7 |
15.4 |
6.9 |
5 |
3 |
2 |
|
UT1-5 |
5.2 |
9.6 |
17 |
7.2 |
5 |
3 |
2 |
|
UT1-6 |
6.2 |
11 |
20 |
9.5 |
5 |
3 |
2 |
|
UT1.5-3S |
3.2 |
5.8 |
14 |
6 |
5.1 |
3.3 |
2.5 |
|
UT1.5-3M |
3.2 |
6 |
15.8 |
7.7 |
5.1 |
3.3 |
2.3 |
|
UT1.5-4 |
4.2 |
8 |
16 |
6.9 |
5.1 |
3.3 |
2.3 |
|
UT1.5-5 |
5.2 |
10 |
18 |
7.9 |
5.1 |
3.3 |
2.3 |
|
UT1.5-6 |
6.2 |
11 |
20 |
9.4 |
5.1 |
3.3 |
2.3 |
|
UT1.5-8 |
8.2 |
14 |
25 |
12.9 |
5.1 |
3.3 |
2.3 |
|
UT1.5-10 |
10.5 |
15.2 |
26 |
13.3 |
5.1 |
3.3 |
2.3 |
|
UT2.5-3 |
3.2 |
6 |
16 |
7.9 |
5.1 |
4 |
2.8 |
|
UT2.5-4 |
4.2 |
8 |
16.3 |
7.2 |
5.1 |
4 |
2.8 |
|
UT2.5-5 |
5.2 |
10 |
16 |
5.9 |
5.1 |
4 |
2.8 |
|
UT2.5-6 |
6.2 |
11 |
20 |
9.4 |
5.1 |
4 |
2.8 |
|
UT2.5-8 |
8.2 |
14.2 |
25 |
12.8 |
5.1 |
4 |
2.8 |
|
UT2.5-10 |
10.5 |
15.6 |
27 |
14.1 |
5.1 |
4 |
2.8 |
|
UT4-4 |
4.2 |
7.8 |
18 |
8.1 |
6 |
5 |
3.6 |
|
UT4-5 |
5.2 |
10 |
18.5 |
7.5 |
6 |
5 |
3.6 |
|
UT4-6 |
6.2 |
11 |
21.4 |
9.9 |
6 |
5 |
3.6 |
|
UT4-8 |
8.2 |
14 |
25 |
12 |
6 |
5 |
3.6 |
|
UT4-10 |
10.5 |
18 |
30 |
15 |
6 |
5 |
3.6 |
|
UT6-4 |
4.2 |
8 |
19.2 |
8.2 |
7 |
6 |
4.4 |
|
UT6-5 |
5.2 |
10 |
20.5 |
8.5 |
7 |
6 |
4.4 |
|
UT6-6 |
6.2 |
12 |
22.5 |
9.5 |
7 |
6 |
4.4 |
|
UT6-8 |
8.2 |
14.8 |
26 |
11.6 |
7 |
6 |
4.4 |
|
UT6-10 |
10.5 |
18 |
30 |
14 |
7 |
6 |
4.4 |
|
UT10-6 |
— |
— |
— |
— |
— |
— |
— |
|
UT10-8 |
— |
— |
— |
— |
— |
— |
— |
|
UT16-6 |
— |
— |
— |
— |
— |
— |
— |
|
UT16-8 |
— |
— |
— |
— |
— |
— |
— |
|
|
