产品简介

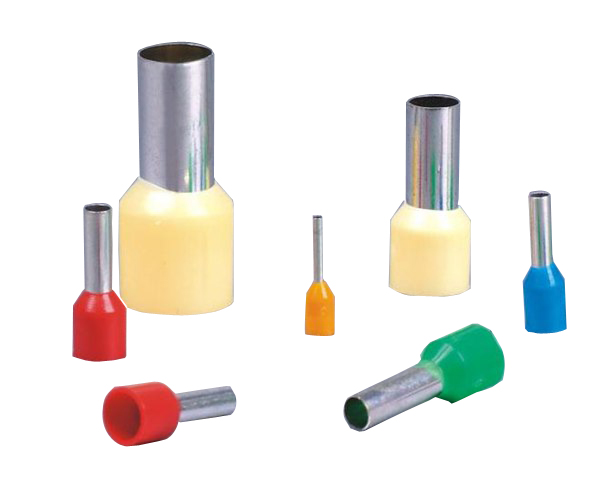

绝缘针形冷压线鼻(空芯)
材质：紫铜，表面处理：镀锡。 主要适用范围:家用电器，电气业，机械设备厂，船厂，配电柜电箱等。产品外观规格良好，导电性能好,安全。 |
绝缘针形冷压线鼻(空芯)型号参数：
|
型号 |
尺寸 |
导线截面 |
|
F
(mm) |
L
(mm) |
W
(mm) |
B
(mm) |
D
(mm) |
C
(mm) |
AWG |
mm2 |
|
E0506 |
6.0 |
12.0 |
2.6 |
6.0 |
1.3 |
1.0 |
#22 |
0.5 |
|
E0508 |
8.0 |
14.0 |
|
E0510 |
10.0 |
16.0 |
|
E0512 |
12.0 |
18.0 |
|
E7506 |
6.0 |
12.4 |
2.8 |
6.4 |
1.5 |
1.2 |
#20 |
0.8 |
|
E7508 |
8.0 |
14.6 |
|
E7510 |
10.0 |
16.4 |
|
E7512 |
12.0 |
18.4 |
|
E7518 |
18.0 |
24.4 |
|
E1006 |
6.0 |
12.4 |
3.0 |
6.4 |
1.7 |
1.4 |
#18 |
1.0 |
|
E1008 |
8.0 |
14.6 |
|
E1010 |
10.0 |
16.4 |
|
E1012 |
12.0 |
18.4 |
|
E1508 |
8.0 |
14.6 |
3.5 |
6.4 |
2.0 |
1.7 |
#16 |
1.5 |
|
E1510 |
10.0 |
16.4 |
|
E1518 |
18.0 |
24.4 |
|
E2508 |
8.0 |
15.2 |
4.0 |
7.0 |
2.6 |
2.3 |
#14 |
2.5 |
|
E2512 |
12.0 |
19.0 |
|
E2518 |
18.0 |
25.0 |
|
E4009 |
9.0 |
16.5 |
4.4 |
7.5 |
3.2 |
2.8 |
#12 |
4.0 |
|
E4012 |
12.0 |
19.5 |
|
E4018 |
18.0 |
25.5 |
|
E6012 |
12.0 |
20.0 |
6.3 |
8.0 |
3.9 |
3.5 |
#10 |
6.0 |
|
E6018 |
18.0 |
26.0 |
|
E10-12 |
12.0 |
21.5 |
7.6 |
9.5 |
4.9 |
4.5 |
#7 |
10.0 |
|
E10-18 |
18.0 |
27.5 |
|
E16-12 |
12.0 |
22.2 |
8.8 |
10.2 |
6.2 |
5.8 |
#5 |
16.0 |
|
E16-18 |
18.0 |
28.2 |
|
E25-16 |
16.0 |
29.0 |
11.2 |
13.0 |
7.9 |
7.5 |
#4 |
25.0 |
|
E25-22 |
22.0 |
35.0 |
|
E35-16 |
16.0 |
30.0 |
12.7 |
14.0 |
8.7 |
8.3 |
#2 |
35.0 |
|
E35-25 |
25.0 |
39.0 |
|
E50-20 |
20.0 |
36.0 |
15.3 |
16.0 |
10.9 |
10.3 |
#1 |
50.0 |
|
E50-25 |
25.0 |
41.0 | |
|
