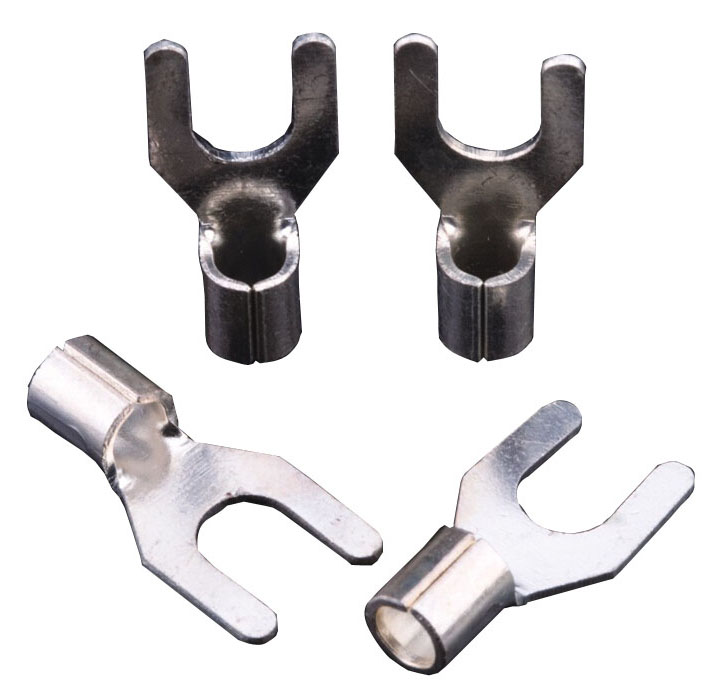

SNB叉形裸焊口紫铜产品参数:
导线截面2.5~4mm2(美国线规14~12) 最大电流:Imax=37A 材质:紫铜 材料厚度:1.0mm
型号 |
美制螺栓号 |
螺栓口直径 |
尺寸 |
B |
L |
F |
E |
Dφ |
dφ |
|
#8 |
3.2 |
5.7 |
18.3 |
7.0 |
6.0 |
5.0 |
3.0 |
|
#10 |
4.3 |
8.0 |
18.3 |
7.0 |
|
#10 |
5.3 |
8.0 |
18.3 |
7.0 |
|
1/4 |
6.4 |
12.0 |
21.5 |
12.1 |
导线截面4~6mm2(美国线规12~10) 最大电流:Imax=48A 材质:紫铜 材料厚度:1.0mm
型号 |
美制螺栓号 |
螺栓口直径 |
尺寸 |
B |
L |
F |
E |
Dφ |
dφ |
|
#6 |
3.7 |
8.3 |
19.5 |
7.5 |
6.8 |
5.6 |
3.4 |
|
#8 |
4.3 |
8.3 |
19.5 |
7.5 |
|
#8 |
4.3 |
9.0 |
19.5 |
7.5 |
|
#10 |
5.3 |
9.0 |
19.5 |
7.5 |
|
1/4 |
6.4 |
9.0 |
19.5 |
7.5 |
|
1/4 |
6.4 |
12.0 |
25.5 |
12.0 |
|
5/16 |
8.4 |
14.0 |
24.5 |
11.5 |
材质:紫铜 材料厚度:1.2mm 1.4mm 1.7mm
型号 |
美制螺栓号 |
螺栓口直径 |
尺寸 |
B |
L |
F |
E |
Dφ |
dφ |
|
#8 |
4.3 |
8.7 |
23.0 |
6.0 |
8.5 |
7.2 |
4.5 |
|
#10 |
5.3 |
12.0 |
24.5 |
5.7 |
8.5 |
7.2 |
4.5 |
|
1/4 |
6.4 |
12.0 |
24.5 |
5.7 |
8.5 |
7.2 |
4.5 |
|
5/16 |
8.4 |
14.5 |
28.0 |
8.3 |
8.5 |
7.2 |
4.5 |
|
1/4 |
6.4 |
12.0 |
28.0 |
7.5 |
10.5 |
9.0 |
5.8 |
|
5/16 |
8.4 |
14.0 |
28.0 |
7.5 |
10.5 |
9.0 |
5.8 |
|
5/16 |
8.4 |
14.0 |
34.5 |
9.0 |
12.0 |
11.5 |
7.7 |
